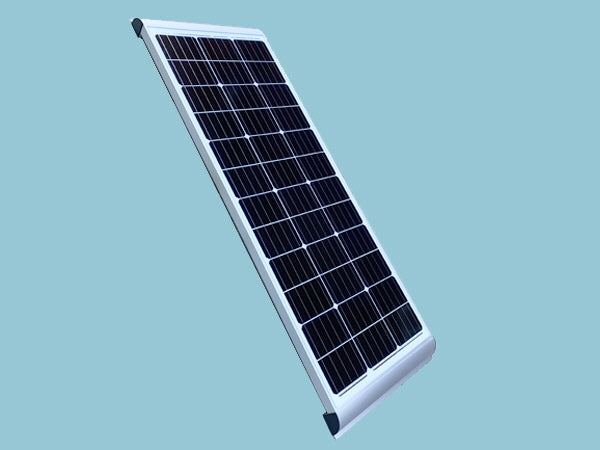

Motorhome/Campervan Solar Panel 130W 12V Mono - Integrated Mounts

The RV130S Solar Panel is a slimline 130W solar panel with integrated roof mounts, seamlessly fitted for an aesthetically pleasing look and an aerodynamic performance. Best of all having the mounts already pre-fitted means you do not have to source and fit the mounts yourself, saving money and time.

With a RV130S solar panel you could expect to generate around 36 amps per day when used in conjunction with a PWM solar charge controller and around 43 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.

Specifications

• Product Code. RV130S
• Max Power. 130W ± 3%
• Max Power Voltage. 18V
• Max Power Current. 7.2A
• Open Circuit Voltage. 21.6V
• Short Circuit Current. 7.8A
• Normal Operating Cell Temp. -45 to 80°C
• Max System Voltage. DC1000V
• Weight. 11 Kg
• Dimensions. 1513 x 528 x 64mm

Features

• Integrated Streamline Aluminium Roof Mounts
• 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
• High Performance Monocrystalline Cells
• Factory fitted aluminium frame with pre-drilled mounting holes
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 5 Years Manufacturers Warranty
• 10 Years Warranty 90% Power Output
• 20 Years Warranty 80% Power Output
