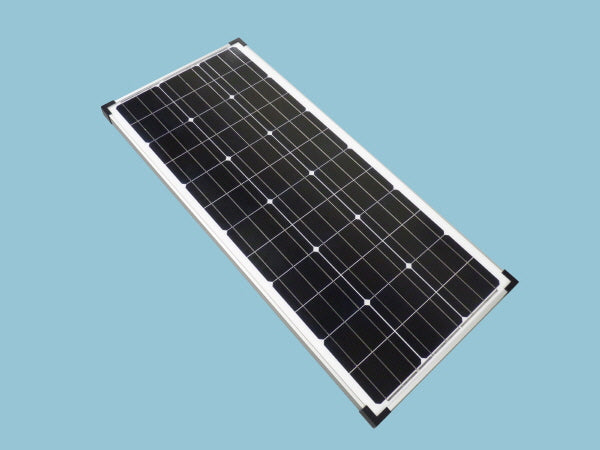

100W 12V Mono Super-Slim Solar Panel

These panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 100 watt solar panel includes supplementing the leisure battery power in caravans, motorhomes and boats.

With a 100W solar panel you could expect to generate around 29 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.

Specifications

• Maximum Power (Pmax): 100W
• Maximum Power Current (Ipm): 5.62A
• Maximum Power Voltage (Vpm): 17.8V
• Short Circuit Current (Isc): 6.07A
• Open Circuit Voltage (Voc): 21.30V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC1000V
• Maximum Series Fuse: 9A
• Size: 510 x 1000 x 35mm
• Weight: 7.3kg

Features

• 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
• High Performance Monocrystalline Cells
• Factory fitted aluminium frame with pre-drilled mounting holes
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 5 Years Manufacturers Warranty
• 10 Years Warranty 90% Power Output
• 20 Years Warranty 80% Power Output
